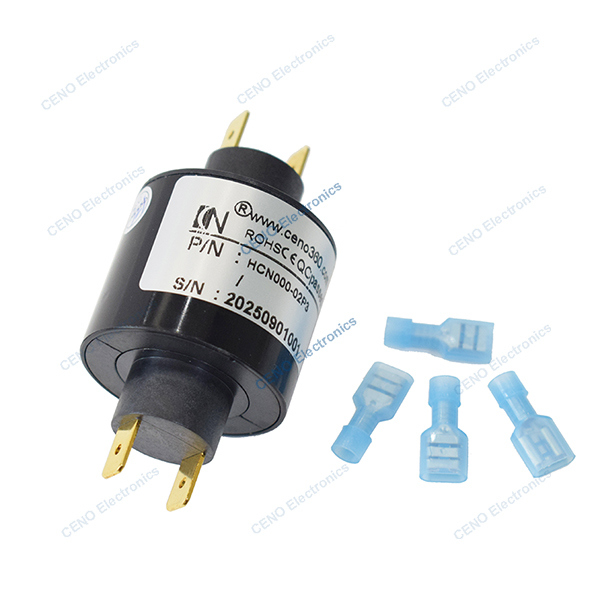

Flat Pin Replace Lead Wire Slip Ring Suitable for Electric power Transmission
HCN000-02P3 is CENO insert type slip ring with 2 pins. The insert slip ring is an economical, compact and reliable rotary connection solution. It is very suitable for equipment with space and cost requirements. Due to HCN series slip rings feature a sophisticated design, using pins instead of wires for contact. They comply with RoHS regulations and are widely used on kinds of modern machinery, such as the assembly line equipment, cable reel etc. For more information please contact us
Features
- Strong current-carrying capacity
- Capable of transmitting high-speed date signals & control signals
- Advanced fiber brush technology ensure low friction zero friction debris
Applications
- Wind turbines
- Rotating worktable
- Packing equipment
- Cable reels & heating rollers
- Assembly line
Optional
- Circuits
- Voltage & Current
- Housing Materials
- Working speed
- Working temperature
Specification
| HCN000-02P3 Specification |
| Current & Circuits |
2 circuits * 15A |
| Rating Voltage |
0 ~ 240 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz |
| Isolation resistance |
≥100MΩ@500VDC |
| Contact resistance wave |
≤ 10mΩ |
| Working temperature |
-20°C~+80°C |
| Working humidity |
60 %RH |
| Operating speed |
0~400rpm |
| Contact material |
Precious metal |
| Housing material |
Engineering plastics |
Outline drawing
Application pictures
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
