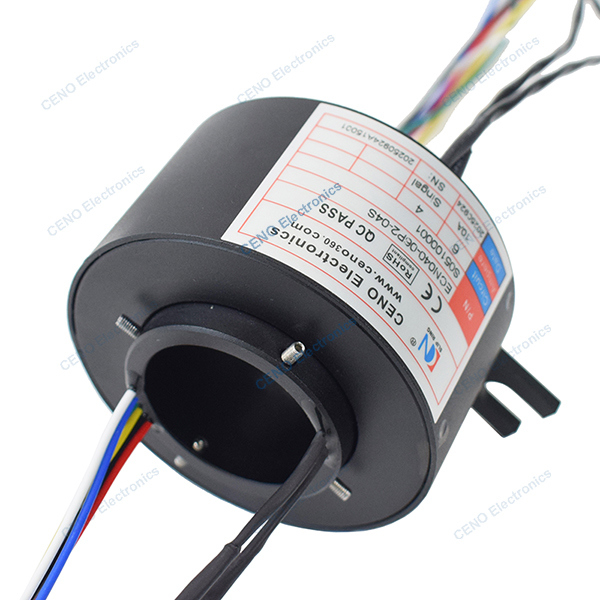

40mm Through Hole Industry Slip Ring combine Electric power with signal and option
ECN040-06P2-04S is CENO industry slip ring combine circuits electric power and signal for industry system. The main function of industrial slip rings is to provide continuous and stable power and signal transmission for rotating bodies. The slip ring ensures unobstructed transmission of power and data signals during equipment rotation by connecting the rotating and stationary parts. For more information about how CENO industry slip ring can fit your application please contact us.
Specification
| ECN040-06P2-04S Specification |
| Current & Circuits |
6 circuits * 10A; 2 * Signal |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz;≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC;≥100MΩ@100VDC |
| Contact resistance wave |
≤ 70mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~150rpm |
| Inner diameter |
Ø40mm |
| Outer diameter |
Ø86mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Lead wire size |
As customized |
| Lead wire length |
As customized |
Features
- Through hole 3mm-980mm optional
- Circuits 1 - 300 circuits are option
- Stable transmitting, no string code, can be integrate various signal /data
- Install easy & Free maintenance
Applications
- Automatic machin
- Turntable testing machine
- Packing equipment
- Filling machinery
- Medical equipment
Optional
- Circuit, Voltage, Current
- Structure & bore size
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
