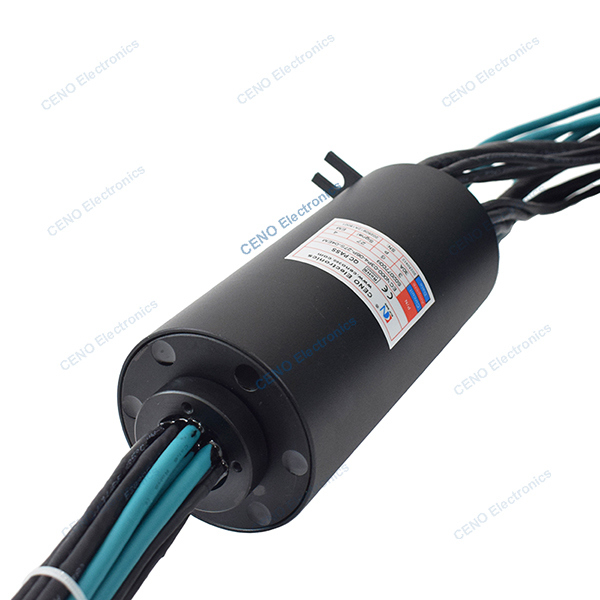

Low Temperature Ethernet Signal Slip Ring combine Electric Power and RS232
ECN000-03P4-06P-27S-04EM is CENO low temperature slip ring combine circuits electric power, RS232 and Ethernet signal for equipment working in temperature from -40°C~+60°C. Low-temperature slip rings are not simply variations of power slip rings, but rather highly reliable products crafted using special materials, specialized lubricants, precision structures, and unique processes to meet the stringent requirements of extreme environments.
Features
- Suit for low-temperature, reliable electric contact and sealing type
- Circuits 1 - 300 circuits are option
- special structure - tolerance design
- Install easy & Free maintenance
Applications
- Satellite communication ground station
- Optoelectronic pod
- Environmental simulation test chamber
- Loading and unloading arm
- Medical equipment
Optional
- Circuit, Voltage, Current
- Sealing type
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| ECN000-03P4-06P-27S-04EM Specification |
| Current & Circuits |
3 * 30A; 2 * 10A; 4 * 5A; 14 * Signal; 1 * RS232; 2 * RS422; 4 * 100M Ethernet |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@200VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-40°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~300rpm |
| Outer diameter |
Ø86mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Service life |
5 million rotation |
| Lead wire length |
As customized |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
