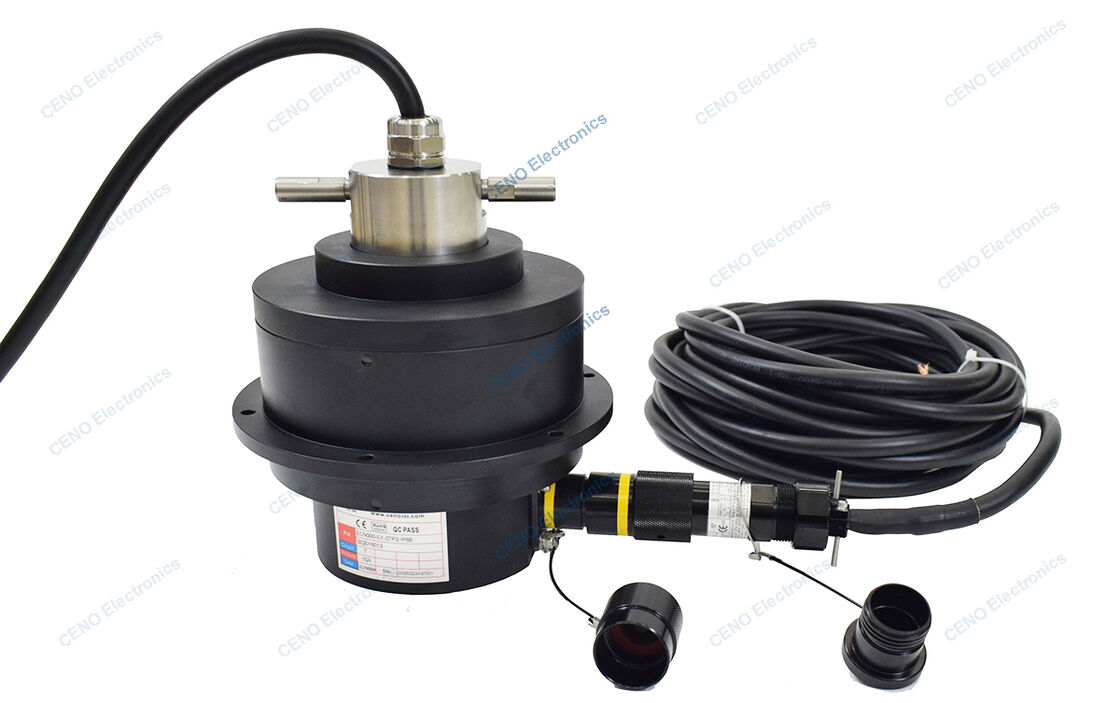

Anti-explosion slip ring with IP66 and optional for Low Temperature Environment
  • Anti-explosion slip ring with IP66 and optional for Low Temperature Environment
  • Anti-explosion slip ring with IP66 and optional for Low Temperature Environment
  • Anti-explosion slip ring with IP66 and optional for Low Temperature Environment
  • Anti-explosion slip ring with IP66 and optional for Low Temperature Environment
Anti-explosion slip ring with IP66 and optional for Low Temperature Environment

Anti-explosion slip ring with IP66 and optional for Low Temperature Environment

Lugar de origem China
Marca CENO
Certificação CE,RoHS,ISO9001,UL
Número do modelo ECN000-EX-07P2-IP66
Detalhes do produto
circuito e corrente:
7 circuitos * 10A
Tensão:
0 ~ 1000 VCA/VCC
Onda de resistência de contato:
≤ 70mΩ
Rigidez dielétrica:
≥ 1500VAC@50Hz
Resistência de isolamento:
≥500MΩ@100VCC
Velocidade de rotação:
0-300rpm
Diâmetro Externo:
160MM
Material de habitação:
Liga de alumínio
Material de contato:
Metal precioso
Tamanho e comprimento do fio condutor:
Como personalizado
Grau IP:
IP66
Umidade de trabalho:
60 % RH
Temperatura de trabalho:
-40°C~+80°C
Termos de pagamento e envio
Quantidade de ordem mínima
1PCS
Preço
Negociável
Detalhes da embalagem
Caixa/conforme solicitação
Tempo de entrega
1 semana
Termos de pagamento
T/T, PayPal, Western Union
Habilidade da fonte
500 unidades por mês
Descrição do produto
Anti-explosion slip ring with IP66 and optional for Low Temperature Environment

ECN000-EX-07P2-IP66 is CENO Anti-explosion Slip Ring with protection grade Exd II BT4 Gb IP66 and suit for low temperature environment from -40°C to +80°C. An explosion-proof slip ring is a conductive rotary connector specifically designed for flammable and explosive environments. Its core feature is to prevent electrical sparks from causing explosions while transmitting electrical signals, data, and current. For more information about how CENO slip ring can fit your application please contact us.

Specification
ECN000-EX-07P2-IP66 Specification

Current & Circuits

7 circuits * 10A

Rating Voltage

0 ~ 1000 VAC/VDC

Dielectric strength

≥1500VAC@50Hz

Isolation resistance

≥500MΩ@100VDC

Contact resistance wave

≤ 70mΩ

Working temperature

-40°C~+80°C

Working humidity

60 %RH

IP protection grade

IP66

Operating speed

0~300rpm

Outer diameter

Ø180mm

Contact material

Precious Metal

Housing material

Aluminium Alloy

Explosion-proof grade

Exd II BT4 Gb IP66

Lead wire size & length

Customized

Features

u Safe explosion-proof design, such as sealed explosion-proof construction

u using a high-strength casing, and precisely machined mating surfaces

u IP Grade be up to 67 and optional


Applications

u Rotating reactors

u Rotating platform

u Construction machinery

u Energy equipment

u Fuel refueling systems


Optional

u Circuit, Voltage, Current

u Signals and data

u Contact / Housing Materials

u Anti-explosion grade

u Working speed & temperature


Outline Drawing
Anti-explosion slip ring with IP66 and optional for Low Temperature Environment 0
Why Choose CENO

CENO is a technologically advanced company in the slip ring field, specializing in research and development, manufacturing, and sales. We utilize advanced equipment and high-precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.

Anti-explosion slip ring with IP66 and optional for Low Temperature Environment 1
Certifications

ISO9001, CE, RoHS, UL, Explosion-proof

Anti-explosion slip ring with IP66 and optional for Low Temperature Environment 2
CENO Advantage

Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training programs.

Services Provided
  • 24/7 consultant service
  • Mass and customized production
  • Solution offerings for 360° rotation systems
Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
