Integrate Ethernet Signal and Radio Frequency Rotary Joint for Low Temperature Environment

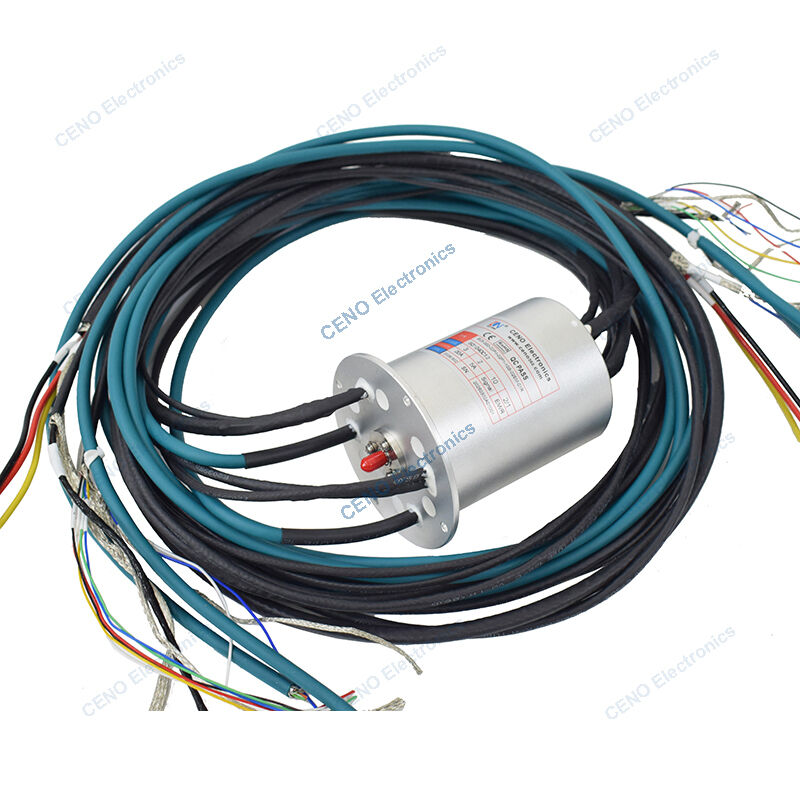

ECN000-03P4-02P1-10S-02EM-01R is CENO integrate slip ring combine Electric Power, Ethernet signal and RF Rotary Joint for radar system or satellite earth station. CENO integrate series of slip ring is non-standard customized, optional circuits, current, voltage and RF rotary joint for different applications. It can be highly integrated with various transmission modules to form a multi-functional rotary connection solution. For more information please contact us
Specification
|
ECN000-03P4-02P1-10S-02EM-01R Specification
|
|
Current & Circuits
|
3 * 20A; 2 * 5A; 6 * Signal; 1*RS422; 2 * Ethernet Signal
|
|
Rating Voltage
|
0 ~ 220 VAC/VDC
|
|
Dielectric strength
|
≥1500VAC@50Hz; ≥500VAC@50Hz
|
|
Isolation resistance
|
≥500MΩ@500VDC; ≥100MΩ@100VDC
|
|
Contact resistance wave
|
≤ 30mΩ
|
|
Working temperature
|
-40°C~+80°C
|
|
Working humidity
|
60 %RH
|
|
IP protection grade
|
IP51
|
|
Operating speed
|
0~300rpm
|
|
Outer diameter
|
Ø76mm
|
|
Contact material
|
Precious Metal; Gold to Gold
|
|
Housing material
|
Aluminium Alloy
|
|
RF
|
Parameters
|
|
Frequency rage
|
DC-4.5GH
|
|
Connect type
|
SMA-F(50Ω)
|
|
Insert loss
|
≤0.3dB
|
|
Insert loss range
|
≤0.05dB
|
|
WSR
|
≤1.25
|
|
WSR C
|
≤0.05
|
|
Peak power
|
100W @DC - 2GHz
|
Features
u Integrated design combine Ethernet, Power & RF Rotary Joint
u Stable transmitting, no string code, can be integrate various signal /data
u Install easy & Free maintenance
Applications
u Automatic machine
u Radar antenna
u Electronic warfare system
u Satellite earth station
u Medical equipment
Optional
u Circuit, Voltage, Current
u Channels ! frequency range
u Contact / Housing Materials
u Protection grade
Working speed & temperature
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
