Low Temperature Integrate Power and Radio Frequency Slip Ring combined RF rotary Joint

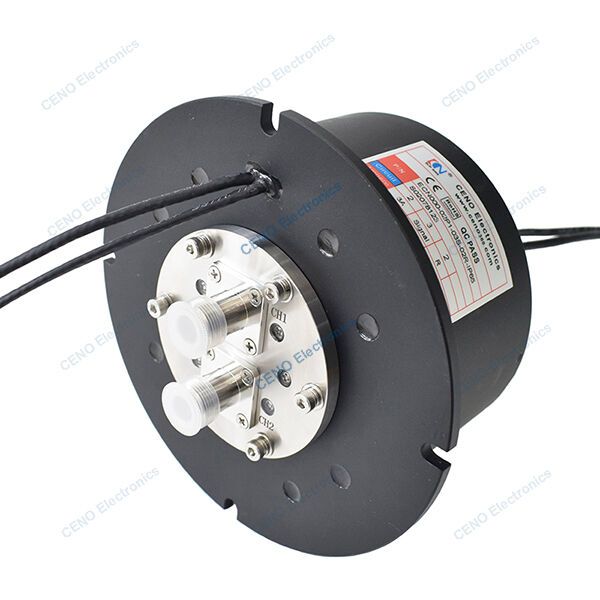

ECN000-02P1-03S-02R-IP65 is CENO Integrate RF Slip Ring combined circuits electric power signal and 2 channels radio frequency rotary joint suit for low temperature environment. CENO integrate slip rings are multi-functional rotary connection solution that highly integrate various transmission modules such as power slip ring, forjs, rf rotary joint and pneumatic/hydraulic channels, specially designed for the simultaneous rotary transmission in complex system. For more information please contact us.
Specification
| ECN000-02P1-03S-02R-IP65 Specification |
| Current & Circuits |
2 * 3A; 3 *10 Signal |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC;≥100MΩ@300VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-40°C~+60°C(W); -45°C~+70°C (S) |
| Working humidity |
60 %RH |
| IP protection grade |
IP65 |
| Operating speed |
0~30rpm |
| Outer diameter |
Ø130mm |
| Materials |
Precious Metal; Aluminium Alloy |
| Installation |
Flange installation |
| RF ROTARY JOINT |
|
| Channels |
Channel 1 |
Channel 2 |
| Connector type |
N-K(50Ω) |
N-K(50Ω) |
| Frequency range |
DC to 1GHz |
DC to 1GHz |
| Average power (max) |
60W |
20W |
| WSR (max) |
1.25 |
1.3 |
| WSRC (max) |
0.1 |
0.15 |
| Insert loss (max) |
0.3dB |
0.4dB |
| Insertion loss rate (max) |
0.1dB |
0.1dB |
| Isolation |
70dB |
70dB |
Features
- Compact structure with integrate design & option signals / data
- Suit for low temperature, Stable performance, high sealing type
- Install easy & Free maintenance
Applications
- Automatic machine
- Scientific research Navigation
- Air traffic control radar
- Photoelectric pod system
- High definition video
Optional
- Circuit, Voltage, Current
- Channels / Frequency range
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline drawing
